ST-17 Anarquista Fisher

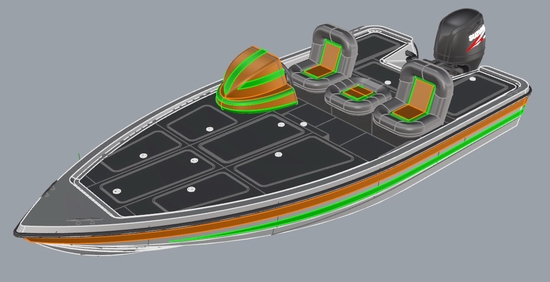

111

The boat can be used as sportfishing boat for active sport fishing methods,and also as a boat for participation in fishing competitions.
It is intended for operation in sea coastal zones and on large lakes with operation range of more than 20 miles.
The design of the hull, has been optimized for a smooth ride on the wave and a quick transition to plane.
Bow and aft fishing decks, large boxes for storage and transportation of fishing equipment. Bow box for eight spinning rods has a length of 2.60 m.
There are three bow boxex, (it is possible to increase the number of boxes to five).
The aftdeck has three boxes for equipment and electronicquipment with 2x12Vbatteries and one box for FishLiweVell with waterpump, fittings and hoses.
The boat features extensive and spacious board-to-board cockpit.
The maximum speed with minimum load is about 35-42 knots, 30-35 knots under full load.
Outboard 70-115 hp motors can be used on this boat as the main engine..

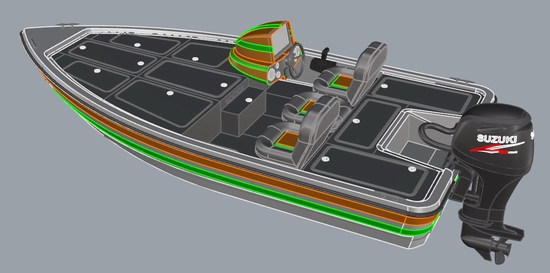

112

Single console

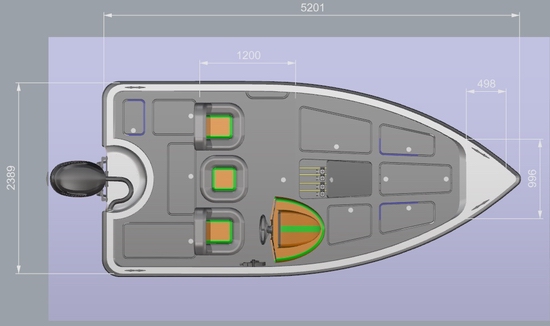

single console 1

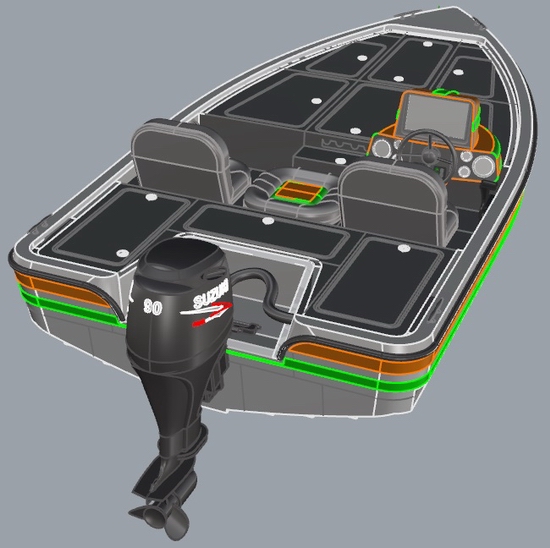

113

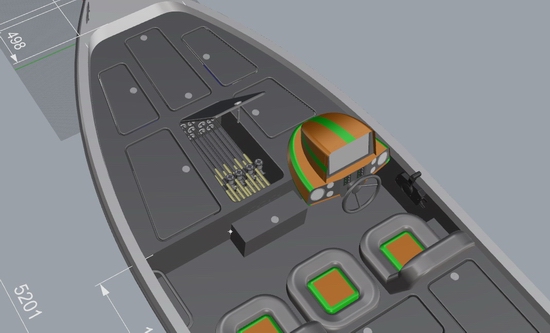

single console 3

Speсification:
LOA 5210 mm
Beam 2389 mm (with fenderguard up to 2500 mm)
Draft 380 mm
Deadrise / Transom 16 deg.
Centrepod and 3 pair of liftstrackes
Weight without engine and fishing equipment 470 kg
Light displacement (with 90hp outboard) 650 kg
Full displacement 1580 kg
Pay load max. 500 kg
Category C
Seating capacity 2-3 pers.
Free-board 0,8 m
Fuel tank 1x70(90) ltr
Boat is built in accordance with the requirements of CE sertification.

Double console

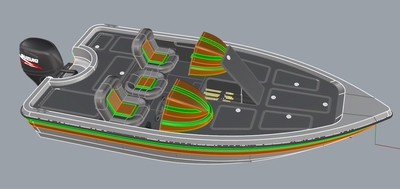

double console 1

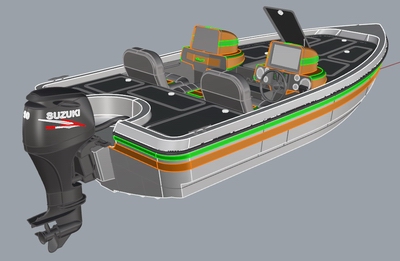

double console 2

Tiler version

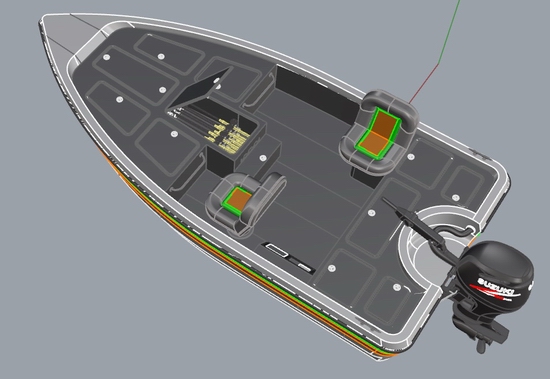

tiler big 2

Delivery includes a boat with a console for the driver, two seats, 12V electrical system (not including batteries), running lights, deck bollards and towing hooks in front and back, three boxes on the foredeck and four on the aftdeck, hydraulic steering with steering gear and a hydraulic cylinder for the outboard motor and fuel system with fuel filter. Normal delivery with a motor includes simple remote control and an aluminum three-bladed prop.

The price depends on the number of hatches and boxes on the fore and aft deck, the number of locks and the type of deck coating (many options)

Optional:

  • Console (left)
  • FishWell
  • Shore power system with two / three battery charger, RCD, and marine deck socket
  • Additional USB sockets and other electricity parts
  • AGM batteries ( 60Ah start, 90-100 Ah for Trolling Motor)
  • Minn Kota Trolling Motor
  • Folding seat for for the third crew member
  • Removable seat on the fore deck
  • LTC ProMarine Radio & speakers
  • Fishing electronics

Smaller version optimized for a trailer without brakes (total towed weight up to 750 kg)

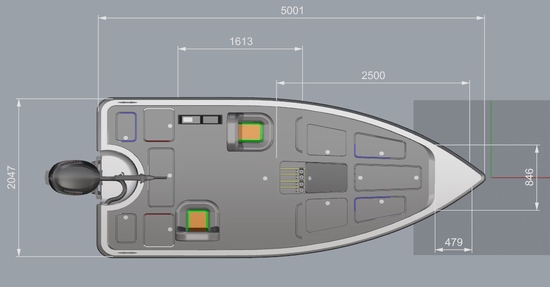

tiller small 1

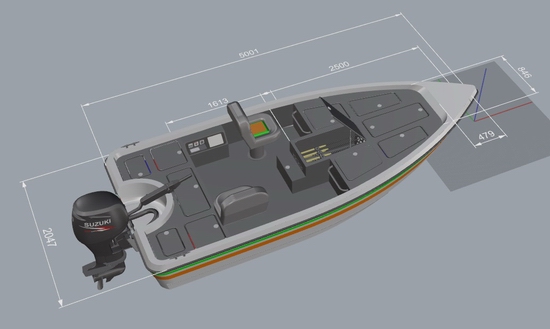

tiller small 2

Speсification:
LOA 5010 mm
Beam 2047 mm (with fenderguard up to 2150 mm)
Draft 380 mm
Deadrise / Transom 16 deg.
Centrepod and 3 pair of liftstrackes
Weight without engine and fishing equipment 430 kg
Light displacement (with up to 60hp outboard) 564 kg
Category C
Seating capacity 2-3 pers.
Free-board 0,7 m
Fuel tank: 1x25(30) l removable, or fixed 1x60 l

Outboard 50-90 hp motors can be used on this boat as the main engine.
